Water pressure is the driving force behind every firefighting operation. Without adequate pressure, water cannot reach the fire, penetrate burning materials, or be effective. Fire fighting trucks must not only generate pressure but also maintain it consistently throughout the entire firefighting operation.

This article explains how fire trucks produce, control, and sustain water pressure, covering the key components and principles involved.

ISUZU Fire Department Utility Truck For Senegal

» I. Where Does Water Pressure Come From?

Water pressure in a fire truck comes from the fire pump. The pump is driven by the truck's engine through a power take-off (PTO) system. When the PTO is engaged, engine power is redirected to spin the pump impeller at high speed.

The impeller is a rotating disc with curved vanes. As it spins, it throws water outward by centrifugal force. This action creates two effects simultaneously:

Low pressure at the center (eye of the impeller): Water is drawn in from the tank or intake hose
High pressure at the outer edge: Water is forced out into the discharge piping

This is why most fire truck pumps are called centrifugal pumps.

ISUZU water tender fire fighting vehicle for Albania

Pump size and power must match the vehicle's intended use. Large fire trucks, such as a 25,000-liter water/foam combination truck, require more powerful pumps to maintain high pressure while delivering large volumes of water. These heavy-duty pumps are designed for efficiency and reliability, even under extreme conditions.

For smaller trucks, such as a 3,000-liter light foam pumper, a less powerful but still effective pump is used. These trucks do not need to deliver as much water, and the smaller pump is sufficient to maintain the pressure required for their operations.

Additionally, the height of the onboard water tank and the position of the pump affect pressure. Water flows by gravity from the tank to the pump, but the pump must still increase the pressure to push water effectively through the hoses.

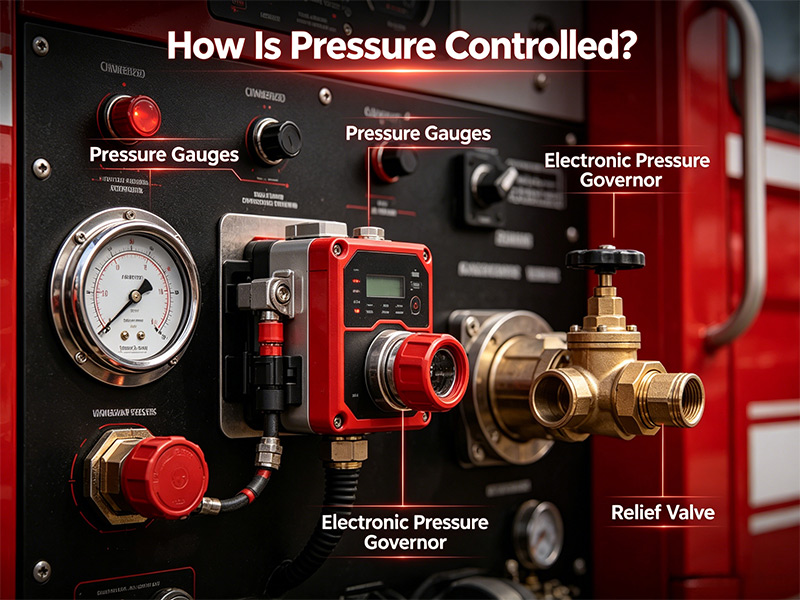

» II. How Is Pressure Controlled?

Once pressure is generated, it must be controlled to match the specific firefighting task. Different situations require different pressures.

1. Engine Throttle Control

The simplest way to adjust pressure is by changing engine speed. Increasing engine RPM spins the pump impeller faster, which increases pressure. Decreasing RPM lowers pressure. The pump operator controls engine speed from the pump panel using an electronic throttle.

2. Pressure Governor Systems

Modern fire trucks are equipped with electronic pressure governors. These devices automatically maintain the set pressure regardless of changes in flow.

When a firefighter opens or closes a nozzle, the flow demand changes. Without a governor, pressure would drop when a new hose line is opened or spike when a line is closed. The governor senses these changes and automatically adjusts engine speed to keep pressure constant.

Mode	Function
Pressure mode	Maintains a preset pressure regardless of flow changes
RPM mode	Maintains a preset engine speed (used for foam operations or when a specific flow is needed)

3. Relief Valves

As a backup to electronic governors, mechanical relief valves provide additional safety. If pressure exceeds a set limit, the relief valve opens, bypassing excess water back to the tank or to the suction side of the pump. This prevents hose bursts and pump damage.

» III. How Is Pressure Maintained Over Distance?

Water loses pressure as it flows through hoses due to friction loss. The longer the hose, the greater the loss. Fire trucks compensate for this in several ways.

1. Pumping at Higher Initial Pressure

The pump operator calculates the pressure needed at the nozzle and adds the pressure that will be lost in the hose. For example, if the nozzle requires 100 psi and the hose will lose 50 psi over its length, the operator sets the pump to deliver 150 psi.

ISUZU industrial tanker fire truck for Togo

2. Using Larger Diameter Hoses

Friction loss decreases significantly as hose diameter increases. Larger diameter hoses have less internal resistance, allowing water to flow more freely and maintain pressure. A 2.5-inch hose has much less friction loss than a 1.75-inch hose at the same flow rate. For long supply lines, fire trucks use large diameter hoses (LDH) of 4 or 5 inches to minimize pressure loss.

3. Relay Pumping

For extremely long distances, multiple fire trucks can work in series. The first truck pumps water to the second truck, which boosts pressure and sends it further. This is called relay pumping.

» IV. What Causes Pressure Drop and How Is It Prevented?

1. Insufficient Water Supply

If the pump cannot draw enough water, pressure will drop regardless of engine speed. Common causes include:

Clogged intake strainer
Collapsed suction hose (soft hose used for drafting)
Air leaks in the intake line

Prevention: Use rigid suction hose for drafting. Check and clean strainers regularly. Ensure all intake connections are tight.

2. Pump Cavitation

Cavitation occurs when the pump does not receive enough water. Instead of water, the impeller spins in a mixture of water and vapor bubbles. When these bubbles collapse, they create shock waves that damage the impeller and cause severe pressure fluctuation.

Signs of cavitation: Loud rattling noise from the pump, erratic pressure gauge readings, reduced flow.

Prevention: Never run the pump faster than the water supply can deliver. Monitor intake pressure gauges. If vacuum is too high, reduce pump speed or check for intake restrictions.

3. Exceeding Pump Capacity

Every pump has a maximum flow and pressure rating. Operating beyond these limits will cause pressure to drop. The pump operator must know the pump's performance curve and stay within safe operating ranges.

» V. Pressure Maintenance for Foam Systems

Foam systems add complexity to pressure maintenance.

A foam fire truck has two separate tanks: one for water and one for foam concentrate. The pump must draw from both tanks and mix them at a precise ratio before discharge.

Isuzu diesel fire pump fire engine for sale Philippines

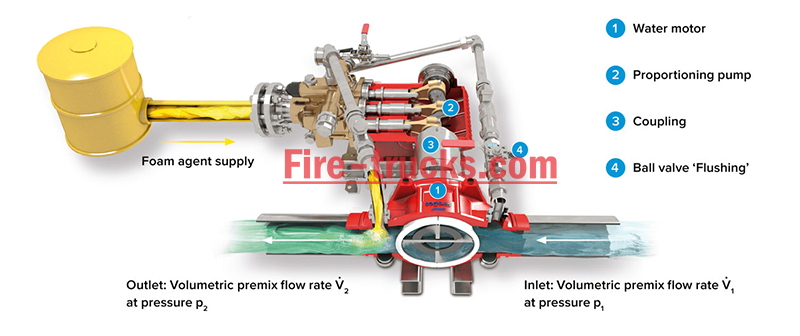

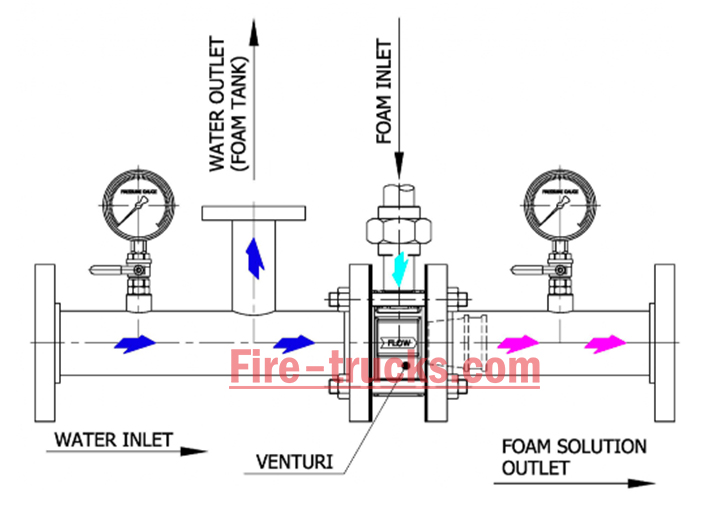

The Role of the Foam Proportioner

The foam proportioner is the key component that controls the mixing ratio.

It is installed in the pipeline. As water flows through, it creates a vacuum that draws foam concentrate into the water stream. Common mixing ratios are 1%, 3%, and 6%.

isuzu wildland fire engine pumper fire truck for Albania

The proportioner is highly sensitive to inlet water pressure.

Condition	Result
Pressure too low	Weak vacuum → insufficient foam intake
Pressure too high	Incorrect ratio → waste of concentrate or poor foam quality

Additional Hardware

Some foam trucks include a cooling water line with a control valve. This cools the power take-off (PTO) during prolonged foam operations, ensuring the drive system runs reliably for extended periods.

» VI. How to Restore Pressure If Lost

If pressure drops during firefighting, take these steps:

Increase engine speed – Throttle up to raise pump RPM
Close unnecessary outlets – More pressure goes to remaining hoses
Check water supply – Is the strainer clogged? Is the water source adequate?
Switch to governor mode – Let automatic control take over

If pressure still cannot be restored, the nozzle firefighter may need to move closer or use a smaller nozzle to reduce flow demand.

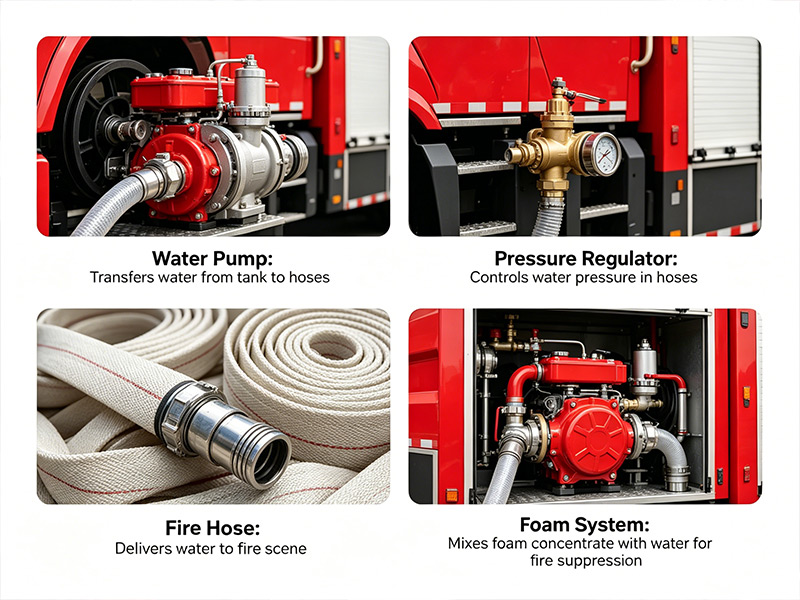

» VII. Common Pressure-Related Equipment on Fire Trucks

Component	Function
Pressure gauges	Display pump discharge pressure and intake pressure (vacuum)
Electronic pressure governor	Automatically maintains set pressure
Relief valve	Prevents over-pressurization
Flow meter	Measures water flow rate (used to verify pump output)
Intake pressure gauge	Shows vacuum (drafting) or positive pressure (hydrant supply)

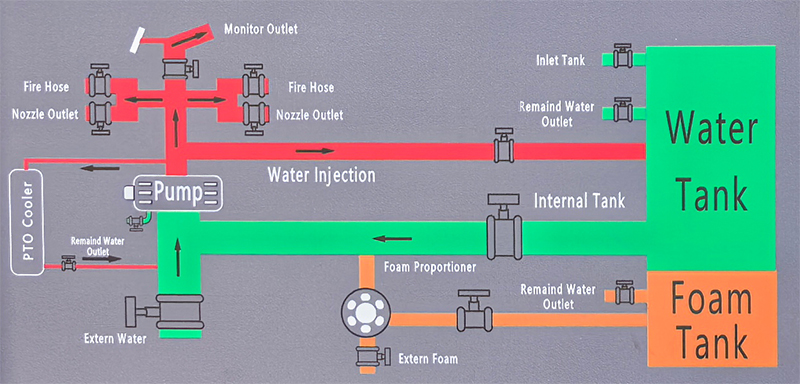

» VIII. Piping System Configuration

The piping system carries water from the tank or external source to the pump and then to the discharge outlets. All pipelines are made of seamless steel pipe, connected by flanges to various components. Seamless steel pipe offers high pressure resistance, good corrosion resistance, and excellent sealing properties.

fire trucks Piping System Configuration

Typical configuration example (based on a CS TRUCKS fire truck model):

Pipeline Type	Size	Quantity	Control Valve
Tank discharge line	DN150	1 line	Manual butterfly valve
External intake port	DN150	1 port	Manual butterfly valve
Standard discharge outlets	DN80 and DN65	2 (one each side)	Pump panel controlled
Fire monitor line	DN80	1 line	Monitor ball valve
External fill lines	DN65	2 lines	Pump panel controlled
Internal fill line	DN65	1 line	Pump panel controlled
Drain line	-	1 line	Drain valve

Flexible couplings are used at critical connections, such as between the tank and the pump, to absorb vibrations from vehicle movement and pump operation. A drain valve is installed at the lowest point of the piping system to drain residual water after operations, preventing freezing and corrosion. Additionally, a cooling water line with a ball valve is provided to cool the PTO during complex operating conditions.

» Conclusion

Fire trucks maintain water pressure through a combination of centrifugal pumps, electronic governors, relief valves, properly sized hoses, and skilled pump operators.

The centrifugal pump generates pressure by spinning an impeller. Larger trucks require more powerful pumps, while smaller trucks use appropriately sized pumps for their needs.
The pressure governor automatically maintains the set pressure
Relief valves provide mechanical backup against over-pressure
Larger hoses and relay pumping minimize pressure loss over long distances
Foam systems require precise calibration of the proportioner to maintain both mixture ratio and pressure
The pump operator monitors and adjusts pressure throughout the operation

Without consistent pressure, water cannot reach the fire or do its job effectively. Maintaining water pressure is not automatic — it requires proper equipment, correct setup, regular maintenance, and constant attention from trained personnel.
