FAW 4x4 All-Terrain Water Tender

[if gte mso 9]> Normal 0 7.磅 0 2 false false false Promote EN-US ZH-CN X-NONE Priority="39" SemiHidden="true" UnhideWhenUsed="true" Name="toc 6"/> Normal IntrueWhenUsed

The FAW 4 × 4 All-Terrain Fire Truck is a professional firefighting vehicle designed for extreme environments, capable of performing firefighting and rescue missions in challenging conditions such as mountains, deserts, earthquakes, and floods. The vehicle is modified based on FAW 4 × 4 all-terrain off-road chassis, with overall dimensions of 7,440 × 2,550 × 3,250 mm and a gross weight of 12,900 kg, featuring left-hand drive. Its unique full-time four-wheel drive system, combined with large 395/85R20 14PR off-road tires, grants the vehicle exceptional terrain adaptability, with a maximum gradient of over 60%, a trench-crossing width of 75 cm, a vertical obstacle clearance of 60 cm, and a wading depth of up to 1.5 meters. Notably, this fire truck is equipped with an automatic tire inflation-deflation system that adjusts tire pressure in real-time based on road conditions, significantly improving mobility on complex surfaces like sand and mud.

The FAW 4 × 4 All-Terrain Water Tender is powered by a CA6DL6-35E68 diesel engine, an 8.57-liter powerplant compliant with Euro VI emission standards, delivering a maximum power output of 261 kW (350 hp). The engine utilizes advanced turbocharging technology and a common-rail fuel injection system, ensuring robust performance even in high-altitude, low-oxygen environments. It is paired with a 9-speed automated manual transmission that offers smooth shifting and ease of operation, significantly reducing driver workload in complex terrains.

Bilang isang propesyonal na sasakyang panlaban sa sunog, ang FAW 4 × Ang 4 na makina ng sunog ay nilagyan ng isang komprehensibong sistema ng paglaban sa sunog. Ang 2,000-litro nitong tangke ng tubig na hindi kinakalawang na asero ay ginawa mula sa mga de-kalidad na materyales at may kasamang manhole, overflow/pressure relief device, liquid level sensor, at drainage port upang matiyak ang ligtas at maaasahang supply ng tubig. Ang CB10/30 standard-pressure fire pump ay may rate na daloy na 30L/s, isang operating pressure na 1.0 MPa, isang suction depth na 7 metro, at isang startup time na mas mababa sa 50 segundo, na nagbibigay-daan sa mabilis na pag-deploy para sa mga operasyon ng paglaban sa sunog. Ang PS8/20W fire monitor ay gumagana sa 0.8 MPa, na may water jet range na higit sa 45 metro, 360 ° pahalang na pag-ikot, at isang vertical na hanay ng elevation na -35 ° hanggang 70 ° , offering flexible operation and wide coverage. This system is particularly suited for long-range, high-altitude firefighting missions and can quickly replenish water from external sources in arid regions to sustain prolonged operations.

The FAW 4 × 4 Off-road Firefighting Truck excels in environmental adaptability. It can operate reliably in extreme temperatures ranging from -40 ° C to 45 ° C, making it ideal for firefighting needs in both frigid and scorching regions. Its high-altitude performance is equally impressive, maintaining stable operation at altitudes above 5,000 meters, making it an optimal firefighting solution for plateau areas.

● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized na serbisyo, i-print ang logo ng iyong kumpanya
● Nangunguna sa pabrika ng trak na panlaban sa sunog ang China
● Higit sa 30 taong karanasan ng propesyonal na tagagawa.
● Idisenyo ayon sa iyong mga pangangailangan
● Maaari kaming mag-alok sa iyong magandang serbisyo pagkatapos ng pagbebenta

Mga Detalye ng Produkto

[if gte mso 9]> Normal 0 7.磅 0 2 false false false Promote EN-US ZH-CN X-NONE

Mga Tampok ng Produkto

Mga Pangunahing Tampok ng FAW 4×4 Fire Tanker Truck:

1. Panlaban sa Malamig: Gumagana sa mga temperatura mula -40°C hanggang 45°C.
2. Kakayahang Mataas na Altitude: Gumagana sa mga altitude na higit sa 5,000 metro.
3. Malawak na Aplikasyon: Idinisenyo para sa mga misyon sa pag-apula ng sunog at pagsagip sa mga kagubatan, damuhan, at iba pang mapaghamong kapaligiran.
4. Superior Mobility: Full-time na four-wheel drive na may awtomatikong sistema ng inflation-deflation ng gulong para pangasiwaan ang iba't ibang kumplikadong terrain; maximum wading depth na 1.5 metro.
5. Matalinong Pagpapatakbo: One-touch intelligent firefighting system na may kakayahang wireless remote control.

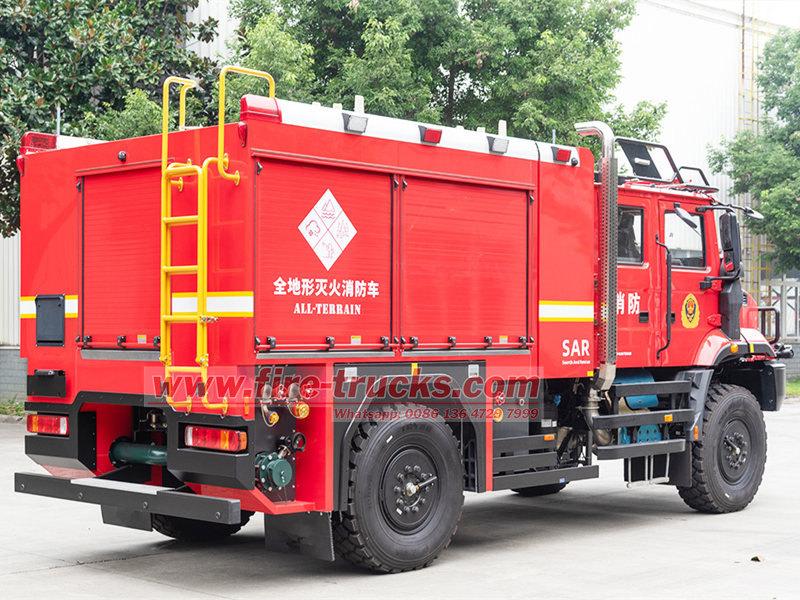

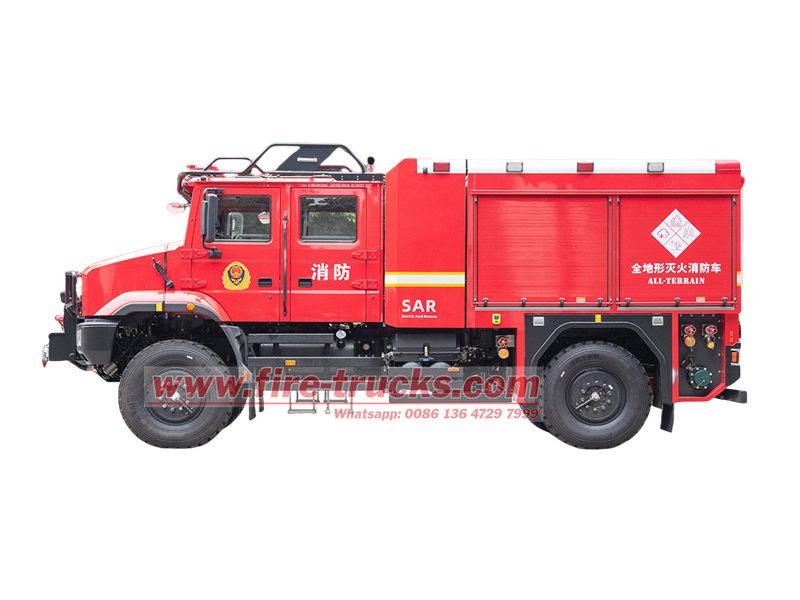

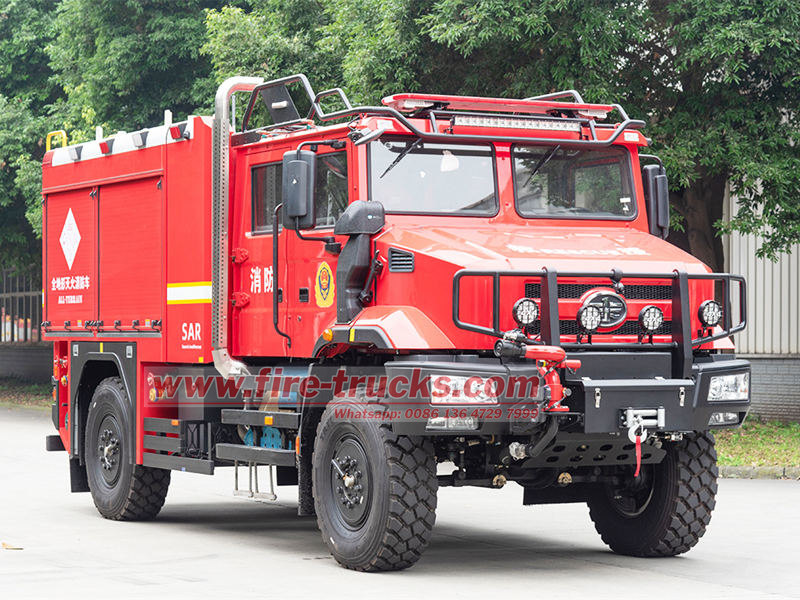

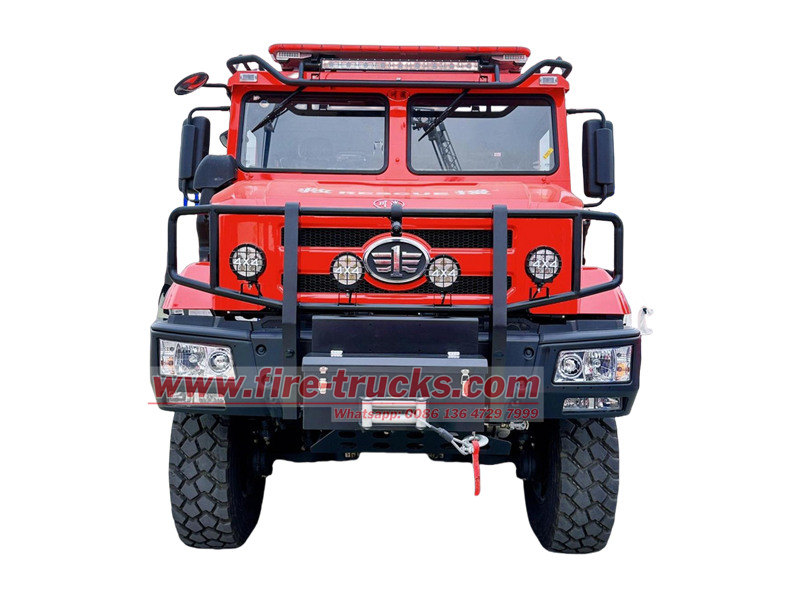

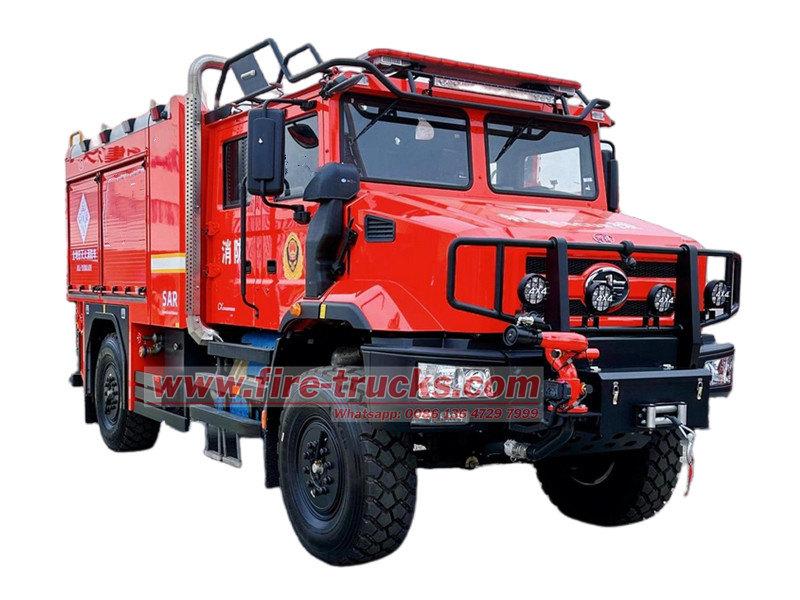

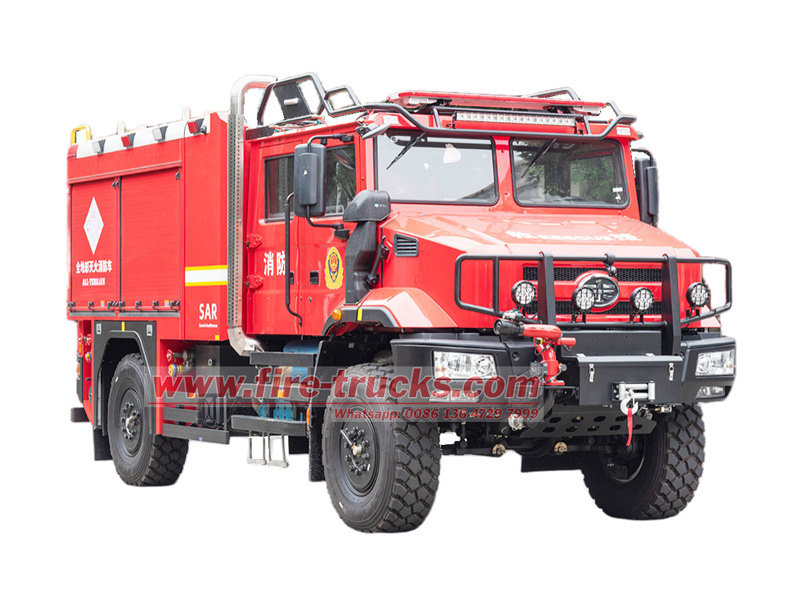

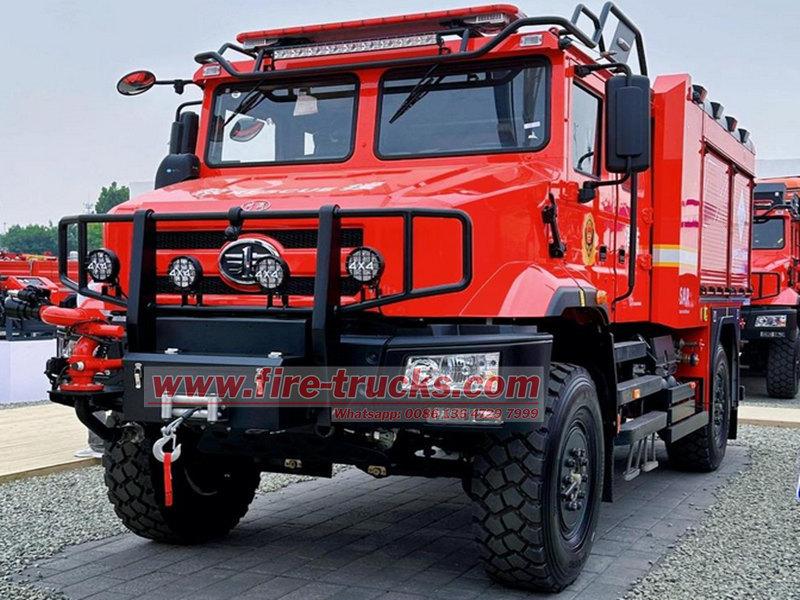

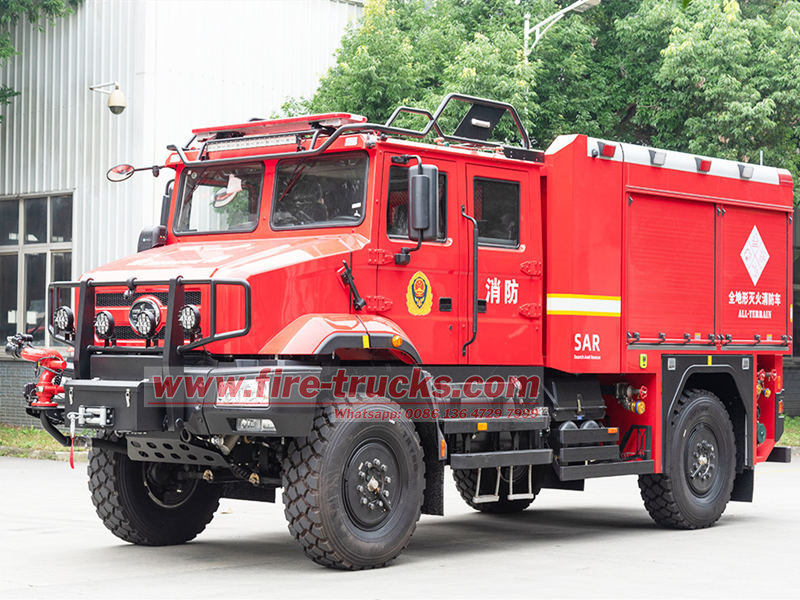

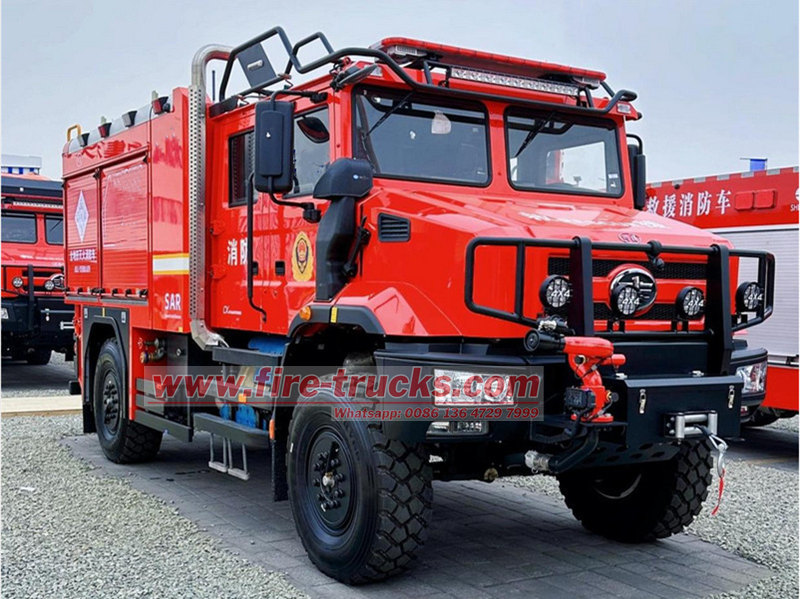

Mga Larawan ng Produkto
